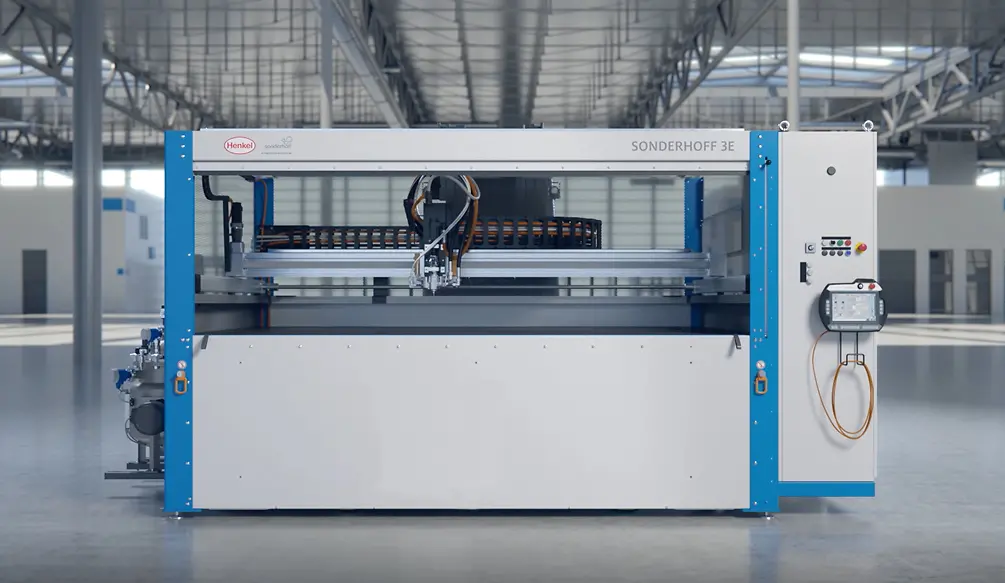

The Sonderhoff 3E dosing cell can be easily packed, transported and delivered as a completely assembled system in a 20-foot container. The CE-compliant 3E cell is prepared in such a way that it only needs to be set up at its destination and connected to the power, compressed air and water supply. As soon as electricity, compressed air and water are available and the conditioned material is in the material pressure tanks, the production can start.
21 apr 2020 Düsseldorf / Cologne, Germany
Henkel presents new SONDERHOFF 3E dosing cell
The new, compactly designed Sonderhoff 3E dosing cell is economic, efficient and ecological. This mixing and dosing system for two components precisely processes liquid, medium and high-viscosity polyurethanes or other polymer reactive materials. Using the FIP (Formed-In-Place) technology, 2-component sealing foams, adhesives or potting compounds are directly applied onto the part, precisely and freely programmable, with the CNC-controlled mixing head.
The Sonderhoff 3E is designed as a completely closed dosing cell, and therefore, it can be used in production in a space-saving manner. The manual lift-door with integrated safety switch at the front of the cell allows access to the dosing area inside the machine and safely defines the hazardous area.
The all-round dosing cell for standard applications
The Sonderhoff 3E dosing cell is designed as a starter model for frequent standard applications. The linear robot of the dosing cell controls the Sonderhoff MK 425 mixing head in a traversing range of 2.5 x 1.25 x 0.25 m (W x D x H). The mixing head is designed for output quantities of 0.5 to 5.0 g per second, with a mixing ratio that can be infinitely adjusted from 10 : 1 to 1 : 2. This allows approximately 80 percent of current applications to be covered. A further special feature is the use of high-pressure water rinsing technology, which provides an environmentally friendly rinsing of the mixing chamber in the mixing head using tap water instead of solvents.
The optional shuttle table unit permits the single-level processing of parts on two worktops, which move back and forth in a pendulum mode. This offers both continuous operation and short cycle times. For larger parts, the two worktops can be connected to one large shuttle table.
As made for efficient production
The Sonderhoff 3E dosing cell with its pre-adjustable operating parameters ensures a safe, precise and thus efficient production process, with a maximum traversing speed of up to 15 meters per minute and a reproducible material dosing application with a high repeating accuracy of 1 mm (± 0.5 mm).
The Sonderhoff 3E is designed for fast and short set-up and programming times, with which above all frequently changing small to medium quantities can be produced economically. Thanks to a very attractive entry price, it also enables a very short payback period.
For further information just look at our new dosing cell in the following video:
About the Sonderhoff brand
The Sonderhoff brand of Henkel AG & Co. KGaA is a globally operating technology platform for customized sealing, adhesive bonding and potting solutions using Formed-In-Place (FIP) technology. Henkel provides users with materials, machines and the process from a single source. The product range consists of foam sealing, adhesive and potting systems based on polyurethane, silicone or PVC, as well as mixing and dosing systems for automated material application to industrial components. We adapt our machines and materials to the customer's optimum manufacturing process. As process experts, we offer OEMs and suppliers tailor-made automation concepts and application technology advice. Alternatively, we take over the sealing, bonding and potting of their components on our systems at contract manufacturing locations in Germany, Austria, Italy, USA and China. The spectrum ranges from the sampling of prototypes and small series to series production on a production scale.
For the customized sealing, adhesive bonding and potting solutions of our customers, we rely on more than 1,000 self-developed formulas, multiple patented knowledge and many years of experience.
You can find further information at www.sonderhoff.com.

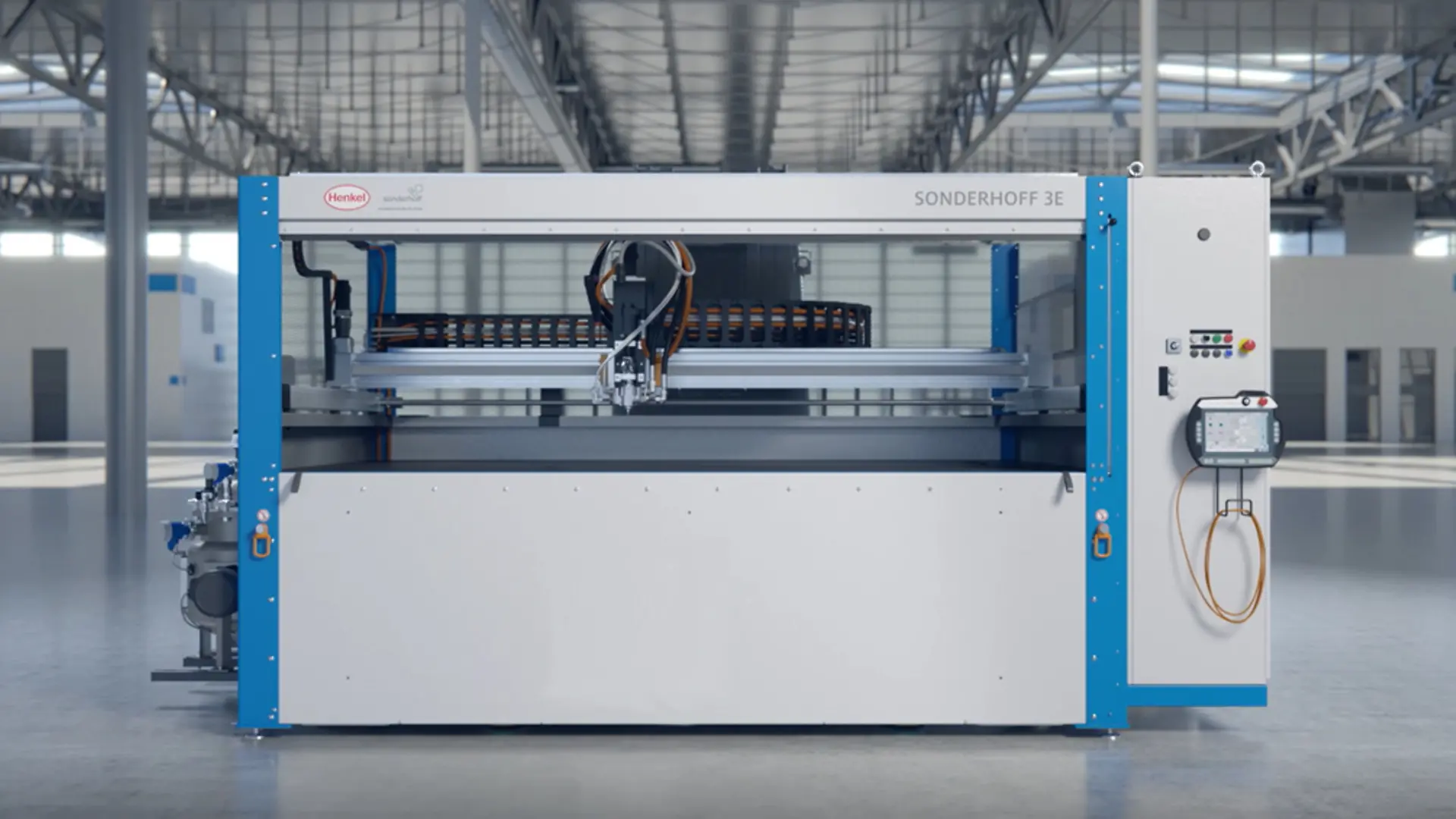

The space-saving, compact Sonderhoff 3E dosing cell for foam sealing, bonding and potting stands for an economic, efficient and ecological production.
